Nozzle System

Name: Nozzle System
Brand: apps uk
Availability: OutOfStock

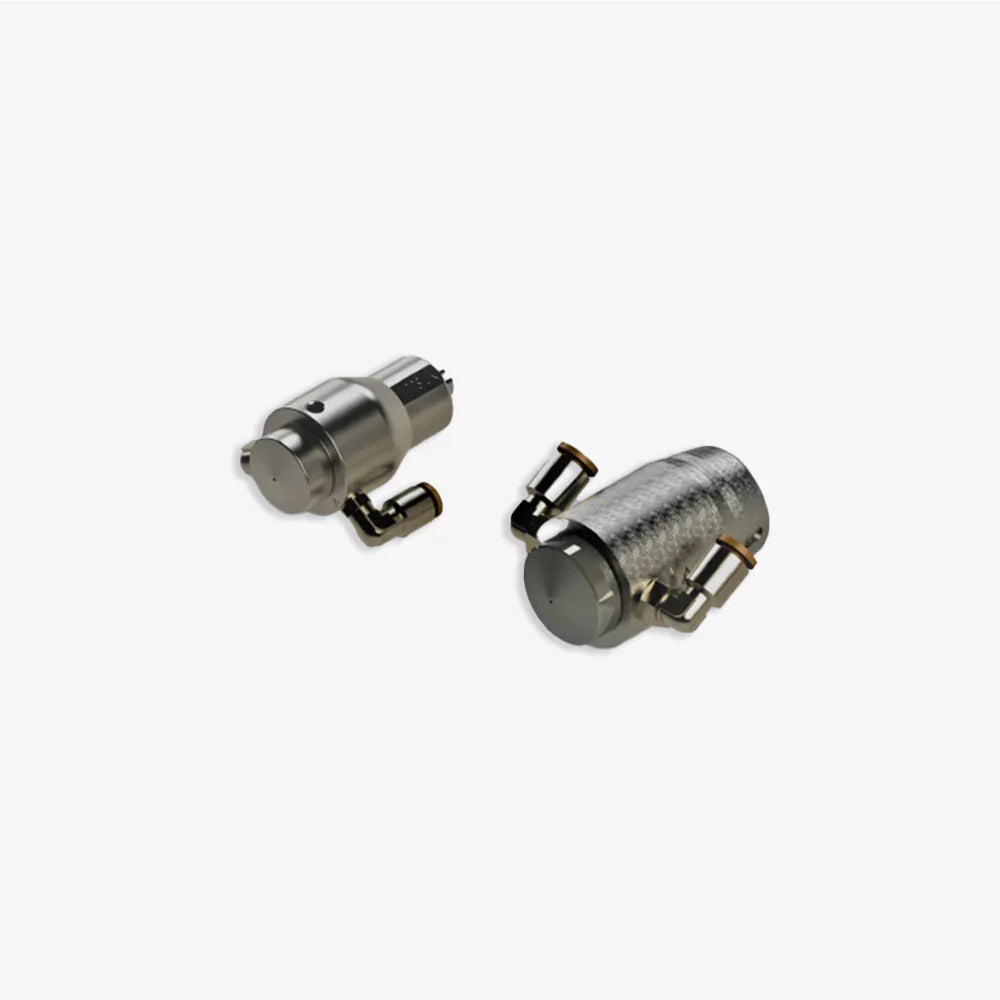

A typical Apps UK Ltd Nozzle System uses nozzles manufactured from stainless steel and designed to produce a droplet size of 40 micron or less. They are air activated in operation so that when air pressure is fed to the nozzle, it moves a differential pressure piston which uncovers the water inlet duct, the air propels the liquid solution into the atmosphere. When the air supply is stopped, the opposite happens, and the liquid flow is positively cut off.

This prevents wastage of water and surfactant due to the positive cut off action, it also means that controlling the system is extremely simple.

The air and surfactant solution are fed to the nozzles by means of the MDPE tubing using push fit connections where tees, elbows and connections to the nozzles are required.

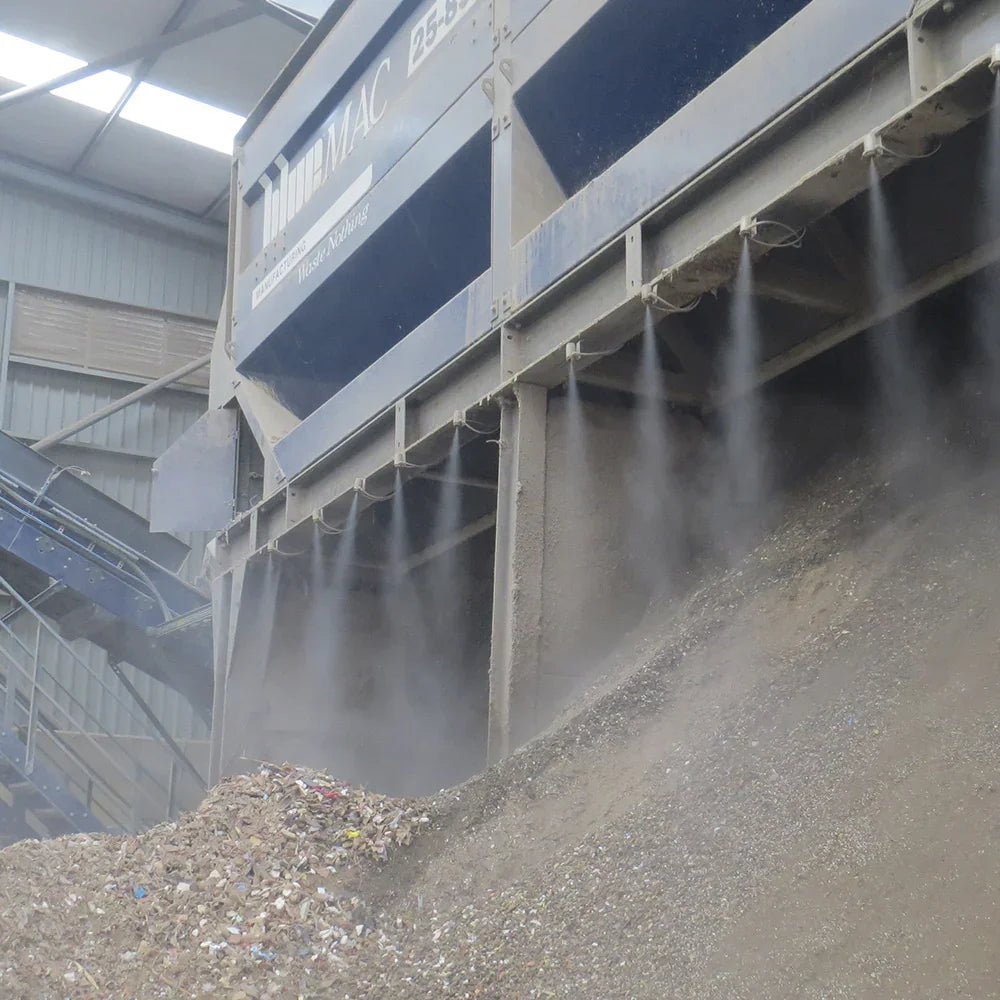

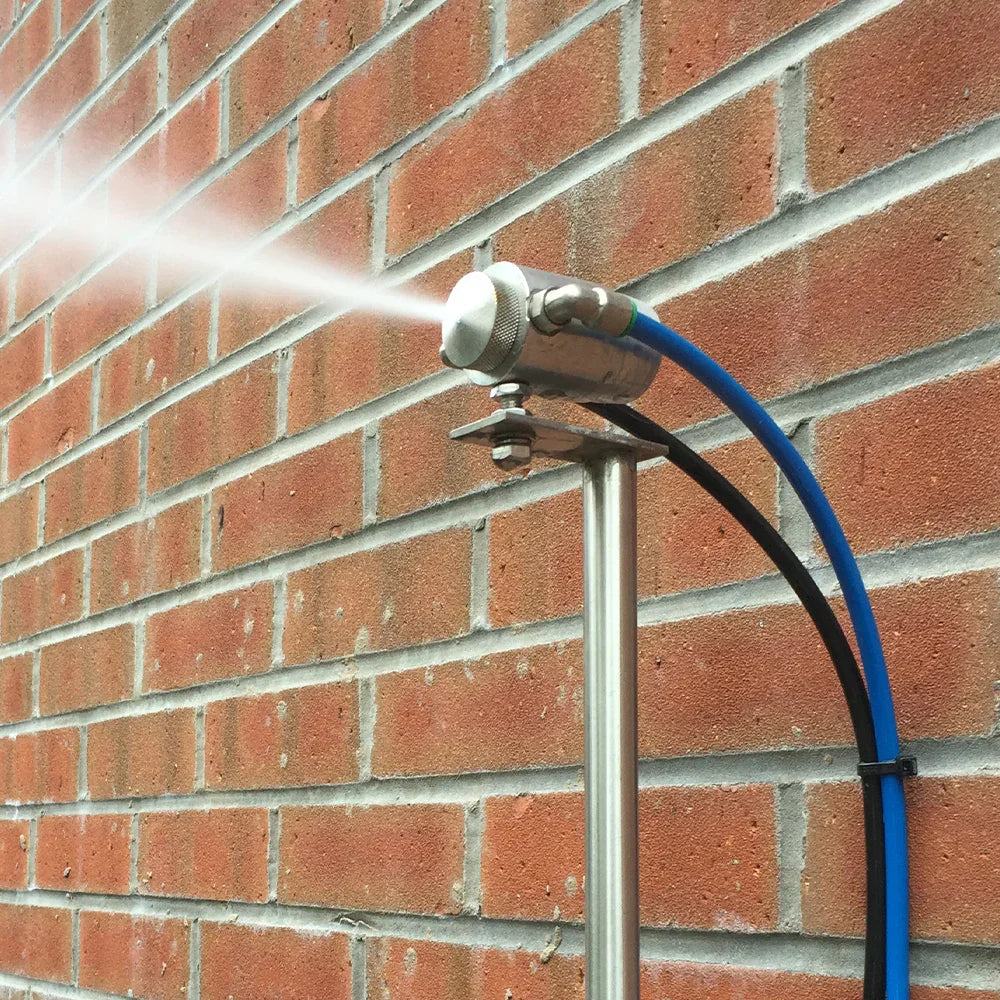

The air pressure propels the liquid out of the nozzle orifice, producing the absorbent mist.

Want to eliminate your pollution problem?

Contact our expert team today to learn more about our solutions.

Specification
Required services
System options/configurations
Downloads

APN02

Construction - Stainless steel
Internal liquid seals - Viton
Internal pneumatic seals - Silicon
Air consumption - 1 cfm @ 2.4 Bar (35 PSI)
Water consumption - 5 L/H @ 3 Bar (44 PSI)
Dimensions - 79mm x 40mm x 74mm
Weight - 540g
Operating temperature range - 0-40°C
dBA @ 7M (When supplied with portable compressor) - 98

APN03

Construction - Stainless steel
Internal liquid seals - Viton
Internal pneumatic seals - Silicon
Air consumption - 0.5 cfm @ 2.8 Bar (41 PSI)
Water consumption - 5 L/H @ 2.8 Bar (41 PSI)
Dimensions - 62mm x 34mm x 66mm
Weight - 320g
Operating temperature range - 0-40°C
dBA @ 7M (When supplied with portable compressor) - 98

For a typical system the following services are usually required:

• Potable water supply (mains water).
• Positive water Pressure of up to 10 Bar (145 psi) or power supply for a water pump1.
• Compressed air supply Bar of up to 13 Bar (189 psi) or power supply for an air compressor2.
• 230VAC 13A3 electrical supply for the electrical control panel.

A basic nozzle system requires water and compressed air to operate. The nozzle system can be configured to operate using several different control methods such as:

• 7-day multi-function timer
• On/Off pulse facility
• Wind speed and direction controller
• Handheld wireless remote
• Electronic manual operation
• Laser

Download the Nozzle System data sheet here

Eliminates pollution, dust, odours

Neutralises air and water-borne pollutants, dirt and odours for a healthier environment

World-leading specialist technology

Developed this pollution-targeting technology in our own laboratory, with recognition for effectiveness across the globe

Improves air quality

Creates a healthier environment by removing air-borne dust and bacteria

Money-back guarantee

We're that confident in our solutions, that we offer a money back guarantee*

Improves air quality with efficient absorption

The Airborne10 system is designed to enhance air quality by using advanced atomisation equipment to release a specially formulated liquid into the air. This liquid binds with and neutralises airborne contaminants, including pollutants, odours, and particles. Tailored to your business's specific requirements, the Airborne10 equipment ensures optimal performance across various sectors, such as manufacturing, healthcare, and hospitality. Its customisable design provides an effective and reliable solution for maintaining a cleaner, healthier environment.

Enquire now

Enquire now

FAQ

How does the Airborne10 system improve air quality?

The Airborne10 improves air quality by releasing a specially formulated liquid into the air that binds with and neutralises airborne contaminants such as pollutants, odours, and particles.

Is the Airborne10 system customisable?

Yes, the Airborne10 system is tailored to meet the specific needs of your individual environment, ensuring optimal performance for your business. Following your consultation with our team, we will design a system that meets all your needs and preferences.

Can the Airborne10 system be used in multiple sectors?

Yes, the Airborne10 is designed for use in a wide range of sectors, including manufacturing, healthcare, hospitality, and more, providing a versatile solution to improve air quality across various industries.

How effective is the Airborne10 system?

The Airborne10 is highly effective at neutralising odours and airborne pollutants. Its specially formulated liquid works by binding with contaminants, ensuring a cleaner, healthier air quality in a wide range of environments.

Contact our expert team today

If you would like to know more about our products, contact our expert team today to find your bespoke solution.

Contact us

Certified, environmentally friendly solution

At APPS, we are committed to providing high-quality products that are both certified for performance and environmentally friendly. The Airborne10, like all our solutions, is designed with sustainability in mind, using safe and effective formulations that meet rigorous industry standards.

Our bespoke systems not only enhance air quality but also minimise environmental impact without the use of harsh chemicals. APPS products are trusted across sectors for their reliability, efficiency.
